Mongoose X ProPack

Everything You Need for Lines, Circles, Arcs and Decorative Layouts

The Mongoose X ProPack combines the precision and portability of the Mongoose X concrete engraver with the accessories contractors need to create straight lines, geometric patterns, circles and arcs.

Use the Mongoose X close to the floor for maximum visibility and control, or attach the removable upright handle for comfortable stand-up operation. Four included blade widths let you create anything from narrow detail lines to bold decorative grooves.

The center-pivot system, connecting tubes and trammel-point kit expand the Mongoose X beyond straight cuts, allowing you to produce repeatable circles, curves and arcs. The complete system stores in an included fitted protective hard case.

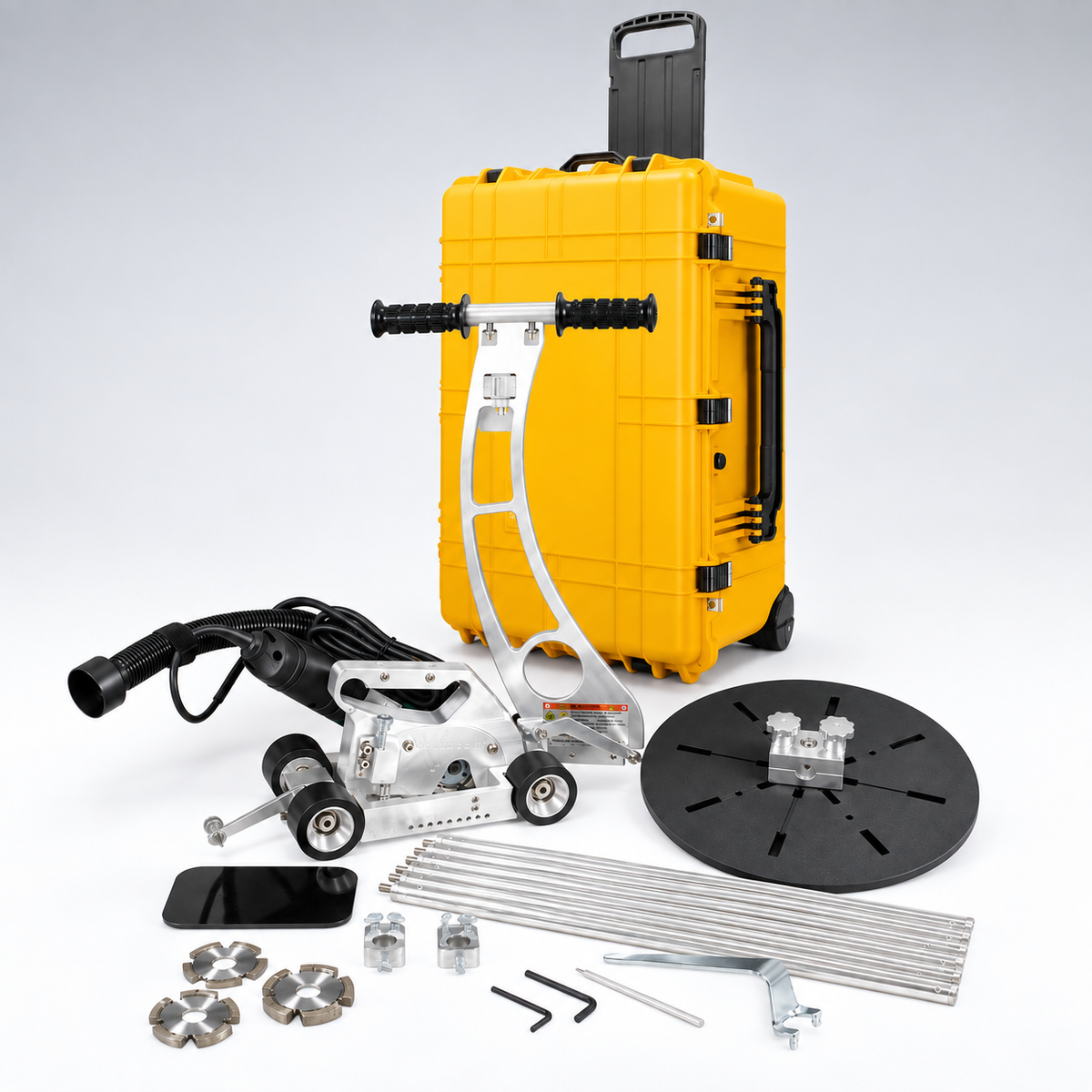

Mongoose X ProPack Includes

• Mongoose X concrete engraving saw

• Removable upright operating handle

• Extension-handle on/off switch

• 3.1-inch × 0.090-inch premium USA diamond blade

• 3.1-inch × 0.125-inch premium USA diamond blade

• 3.1-inch × 0.250-inch premium USA diamond blade

• 3.1-inch × 0.375-inch premium USA diamond blade

• Center pivot

• Six connecting tubes

• Trammel-point layout kit

• Fitted protective hard case with foam insert

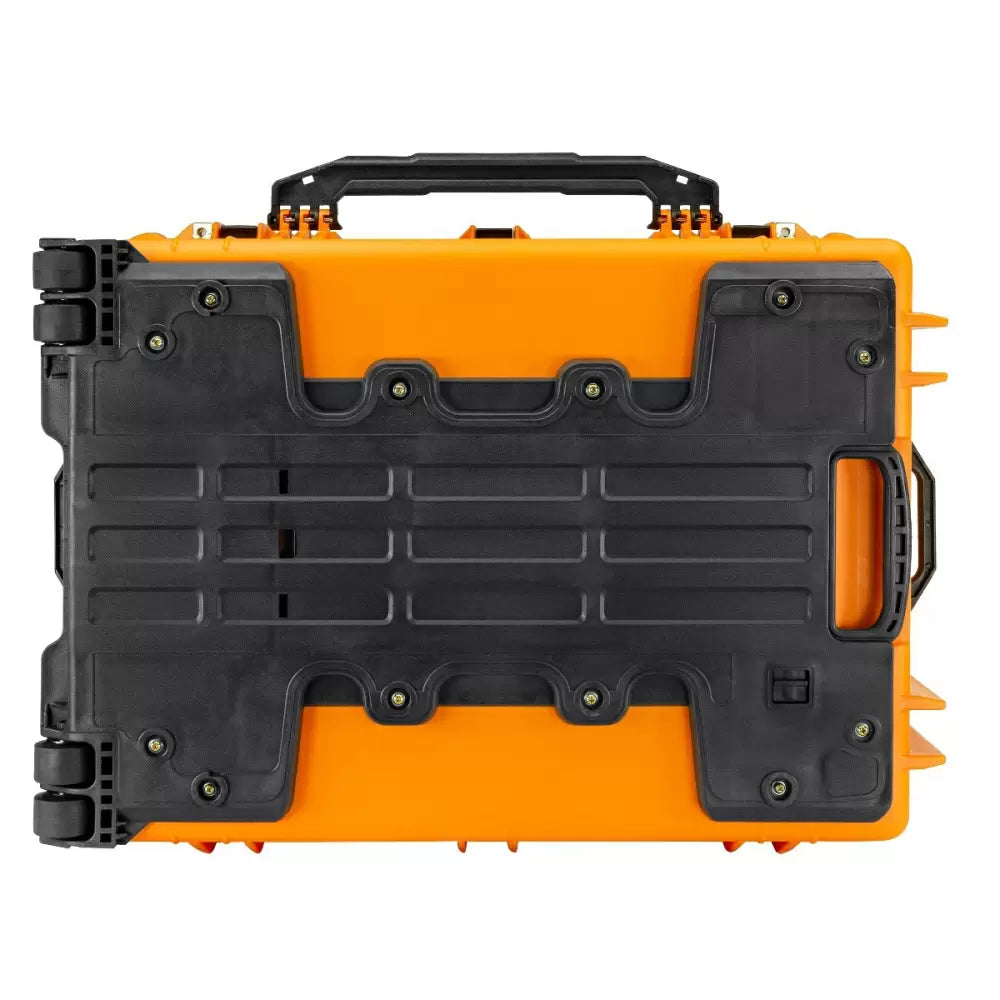

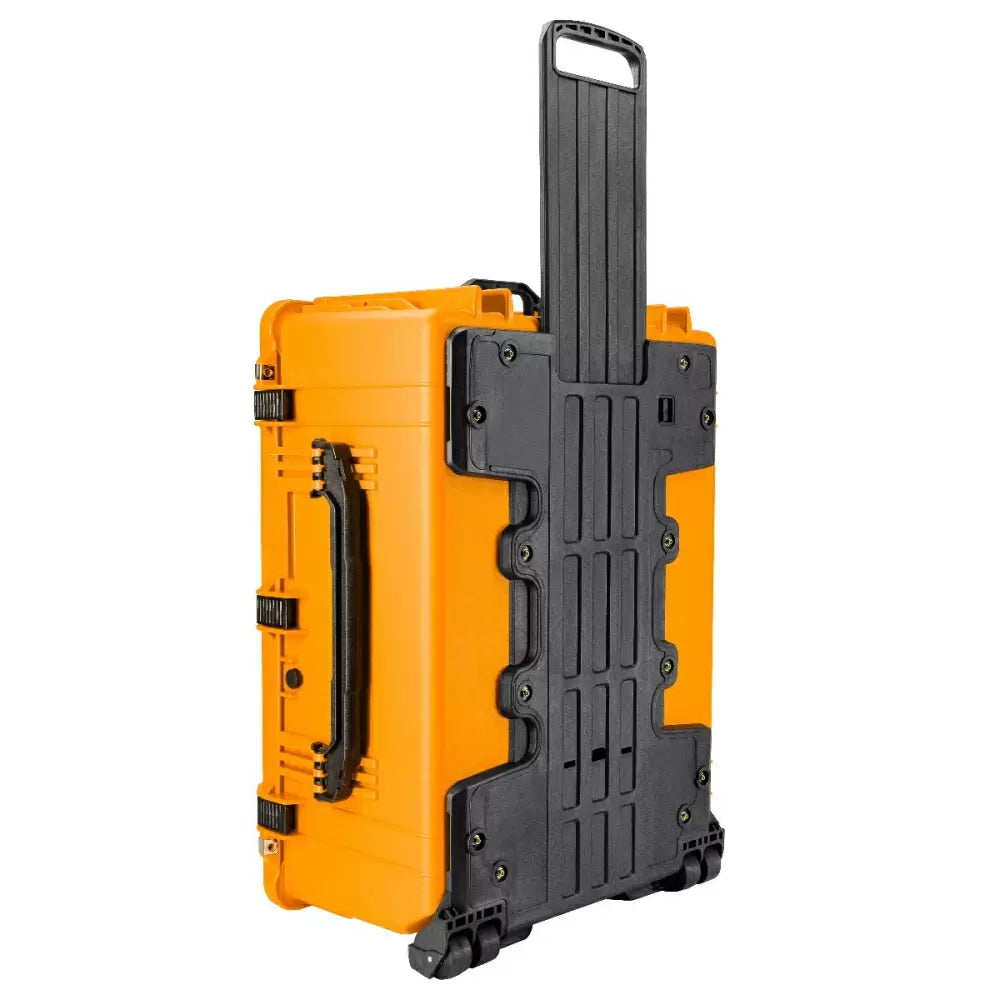

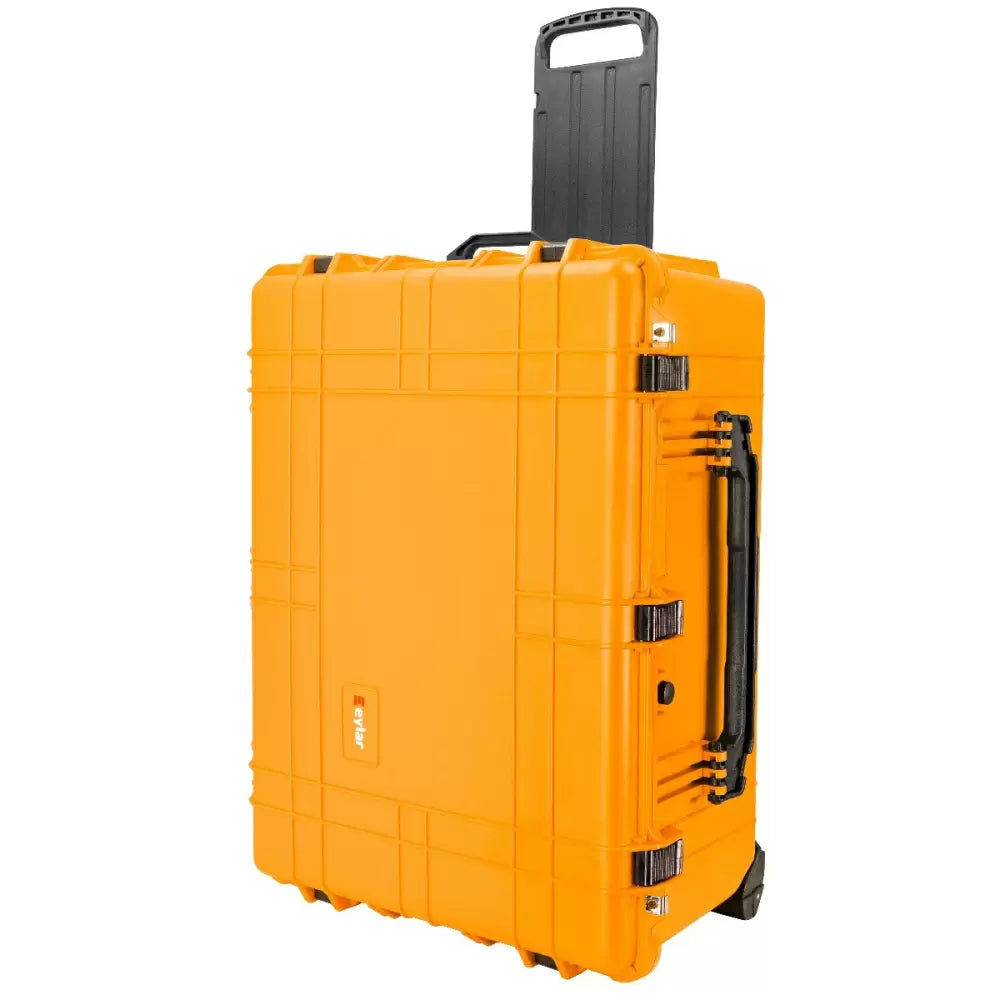

Fitted Protective Hard Case

The Mongoose X ProPack includes a rugged hard-sided case that helps protect the engraving equipment while keeping the primary components organized for storage and transportation.

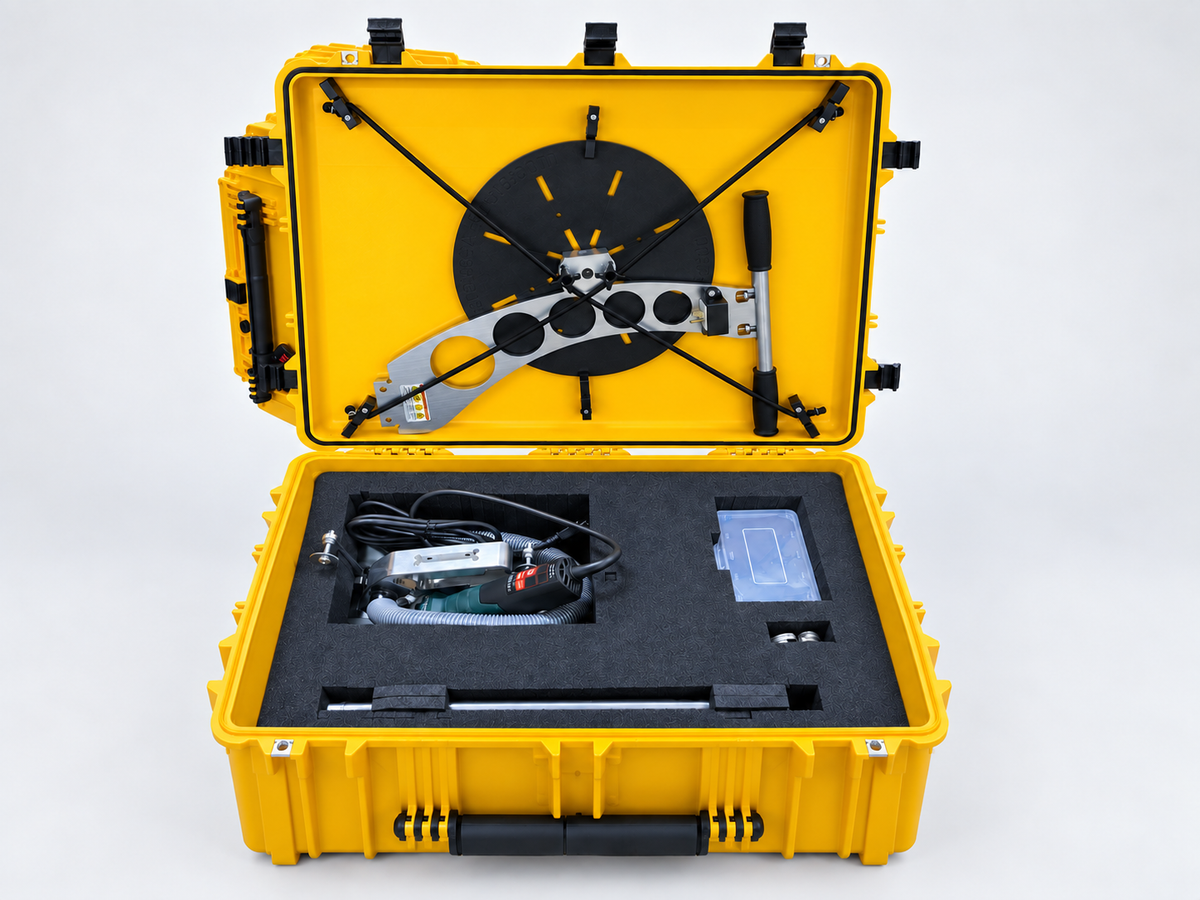

A fitted foam insert securely holds the Mongoose X cutting unit, motor, hose and related components. Egg-crate foam inside the lid adds cushioning when the case is closed.

Case Features

• Rugged hard-shell construction

• Fitted foam insert for the Mongoose X equipment

• Egg-crate foam cushioning inside the lid

• Recessed storage areas for the cutting unit, hose and components

• Secure latches

• Integrated carrying handle

• Helps reduce movement during routine transportation

• Keeps the primary cutting equipment organized between projects

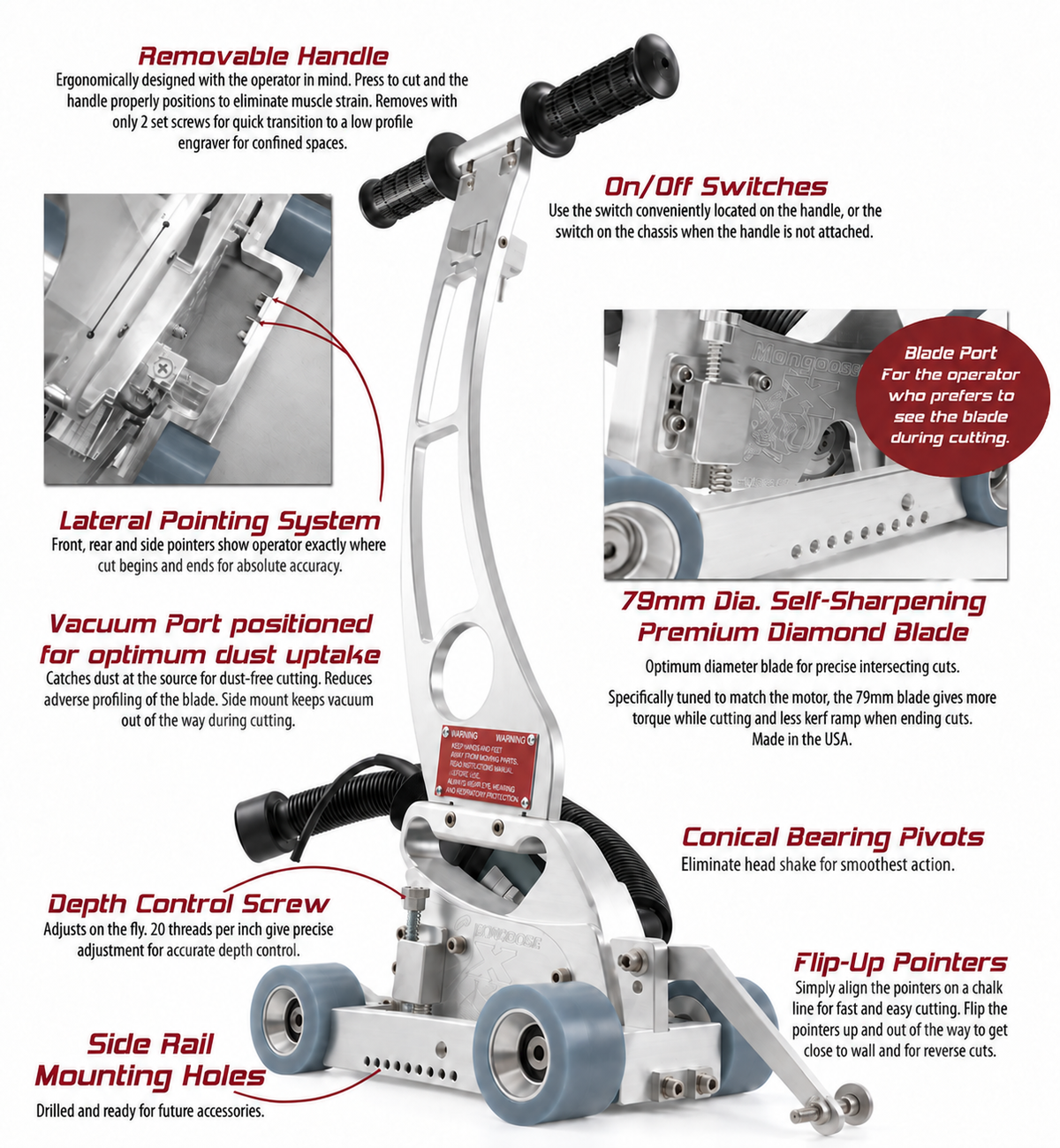

Why Choose the Mongoose X ProPack?

Work Low or Stand Upright

Remove the handle for close-to-the-floor cutting or install it for comfortable stand-up operation. Two set screws make it easy to switch between configurations.

Create Multiple Groove Widths

Four included diamond blades give you the flexibility to cut fine decorative details, standard grout-line effects and wider accent grooves.

Cut Precise Circles and Arcs

Use the center pivot, six connecting tubes and trammel-point accessories to create consistent circular layouts, curved borders and decorative arcs.

Control Every Start and Stop

Press down to begin cutting. When pressure is released, the spring-loaded head lifts the blade out of the groove for clean, controlled stopping points.

Follow Your Layout

Front and rear alignment pointers help the operator stay on the intended path. The open blade port also provides visibility near the cutting area.

Capture Dust Near the Blade

The side-mounted vacuum port connects to an appropriate dust-collection system and helps capture concrete dust near its source.

Designs You Can Create

• Tile and grout-line patterns

• Slate and block layouts

• Running-bond patterns

• Random block and ashlar designs

• Straight lines and borders

• Squares, rectangles and triangles

• Geometric patterns

• Circles and arcs

• Custom decorative layouts

Specifications

• Blade diameter: 3.1 inches

• Included blade widths: 0.090, 0.125, 0.250 and 0.375 inch

• Maximum cutting depth: 1/4 inch

• Minimum side cut from a wall: approximately 4 inches

• Minimum front cut from a wall: approximately 4.5 inches

• Smallest circle using the center portion of the center pivot: approximately 7-inch radius

• Mongoose X dimensions: approximately 13 × 7.75 × 9.5 inches

• Mongoose X weight: approximately 15.82 pounds

• Integrated side vacuum port

• Front and rear alignment pointers

• Precision-machined 6061-T6 billet aluminum construction

• Made in the USA

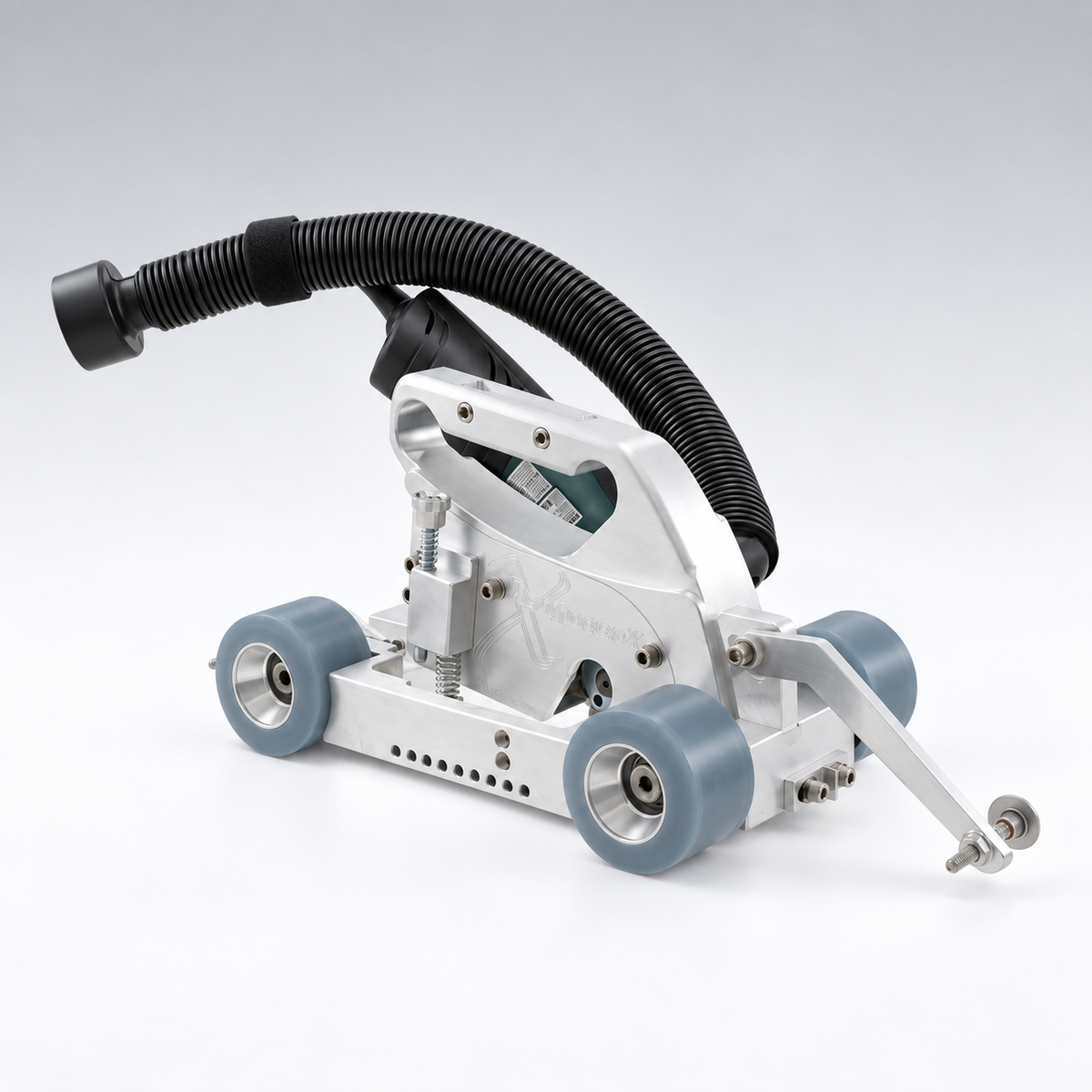

Built for Professional Decorative Concrete Work

The Mongoose X is precision-machined at the Engrave-A-Crete manufacturing facility. Its rigid aluminum chassis, spring-loaded cutting head and wide urethane wheels provide the control and stability required for detailed decorative-concrete layouts.

The ProPack brings the cutting unit, upright handle, four blade widths and circle-layout accessories together in one organized system. It is the best Mongoose X configuration for contractors who want maximum capability without purchasing each component separately.

Need help deciding between the standard Mongoose X and the ProPack? Contact an Engrave-A-Crete specialist before ordering.

Package contents may be updated as components improve. Review the current included-items list before completing your purchase.
