Mongoose X Saw

Precision Concrete Engraving—Low Profile or Stand-Up Operation

The Mongoose X is a lightweight, precision-machined concrete engraving saw designed for controlled starts and stops, accurate layout cutting and easy movement across the concrete surface.

Choose the compact Mongoose X Saw for close-to-the-floor operation, or select the Mongoose X Saw + Stand-Up Handle for the flexibility to work either upright or in the low-profile position.

Both options include a 3.1-inch × 0.125-inch premium USA diamond blade and a fitted protective hard case for organized storage and transportation.

Choose Your Mongoose X

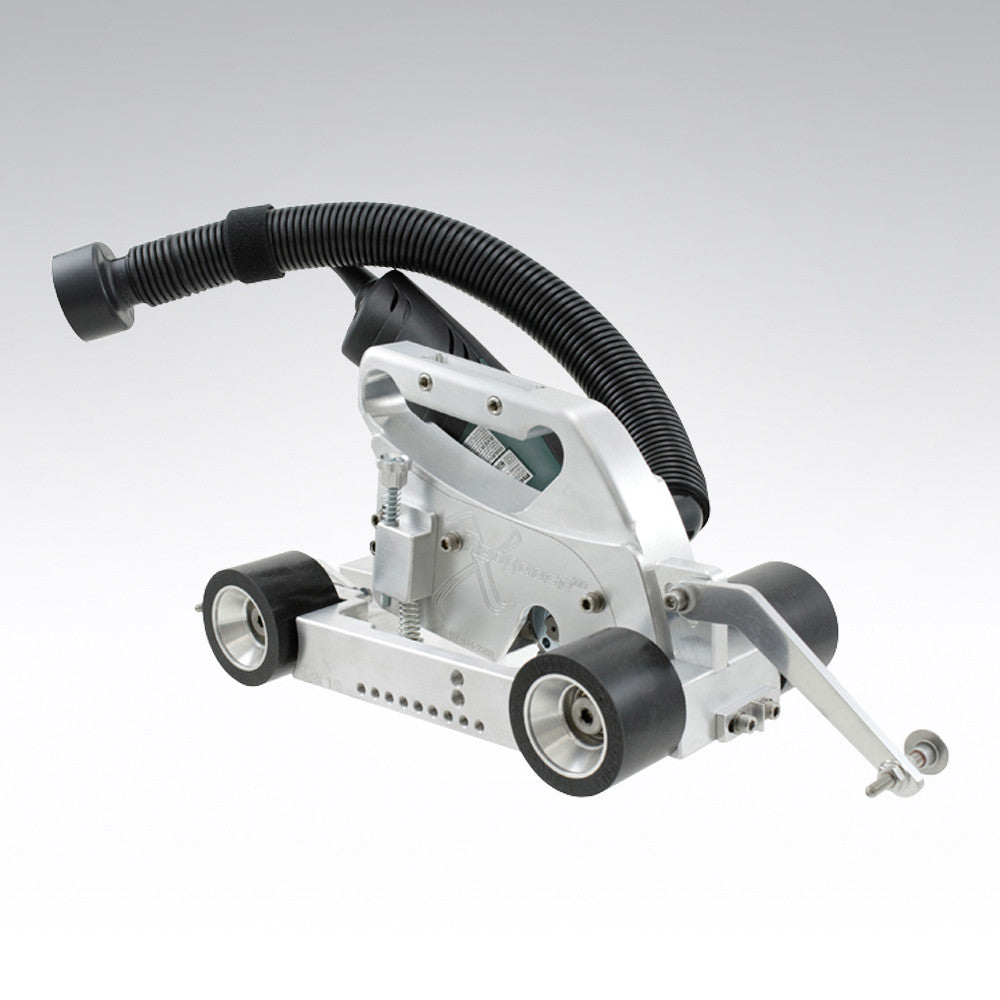

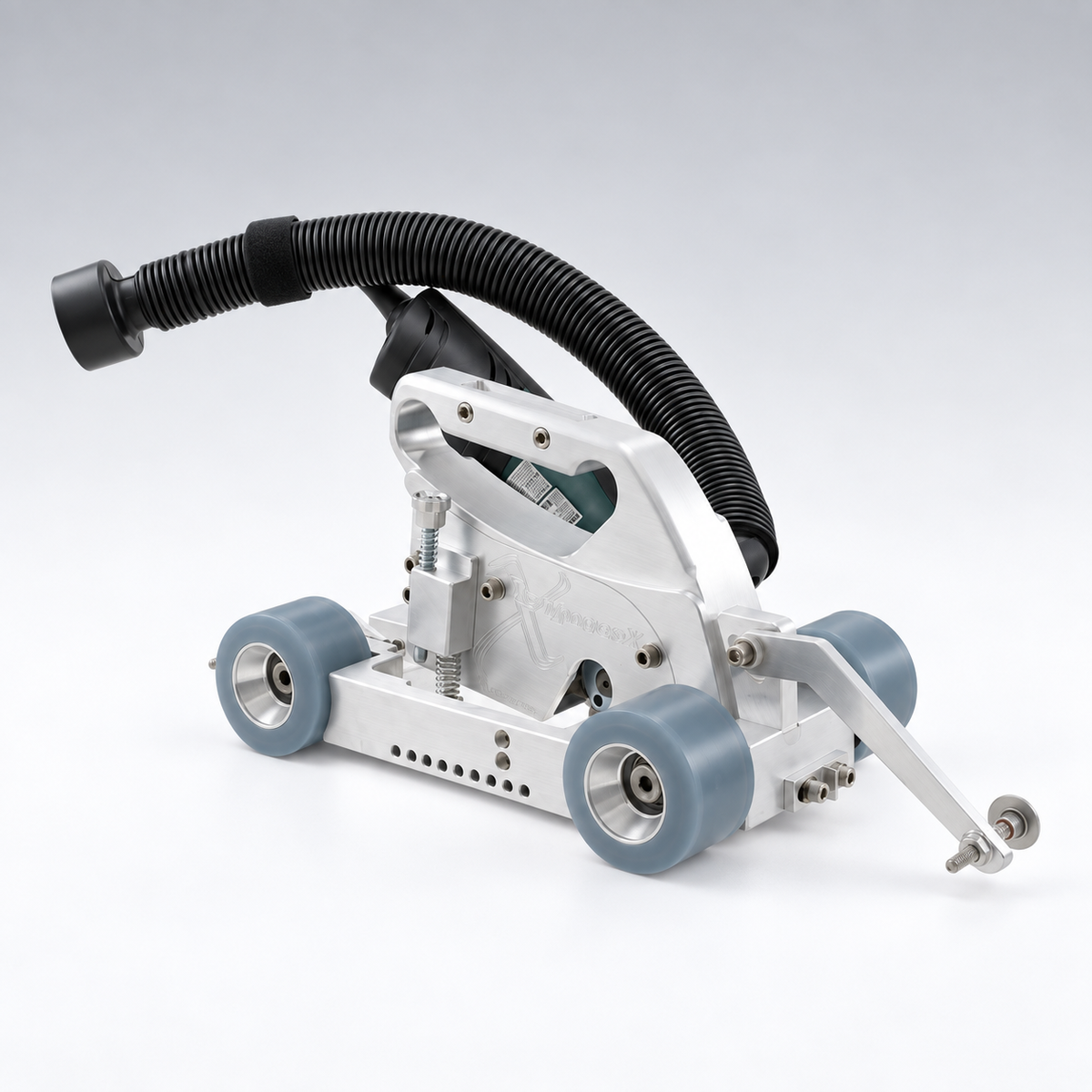

Mongoose X Saw

Best for operators who prefer close-to-the-floor control or want the core cutting unit without the upright handle.

Includes:

• Mongoose X concrete engraving saw

• 3.1-inch × 0.125-inch premium USA diamond blade

• Front and rear alignment pointers

• Integrated side vacuum port

• Adjustable cutting-depth control

• Fitted protective hard case with foam insert

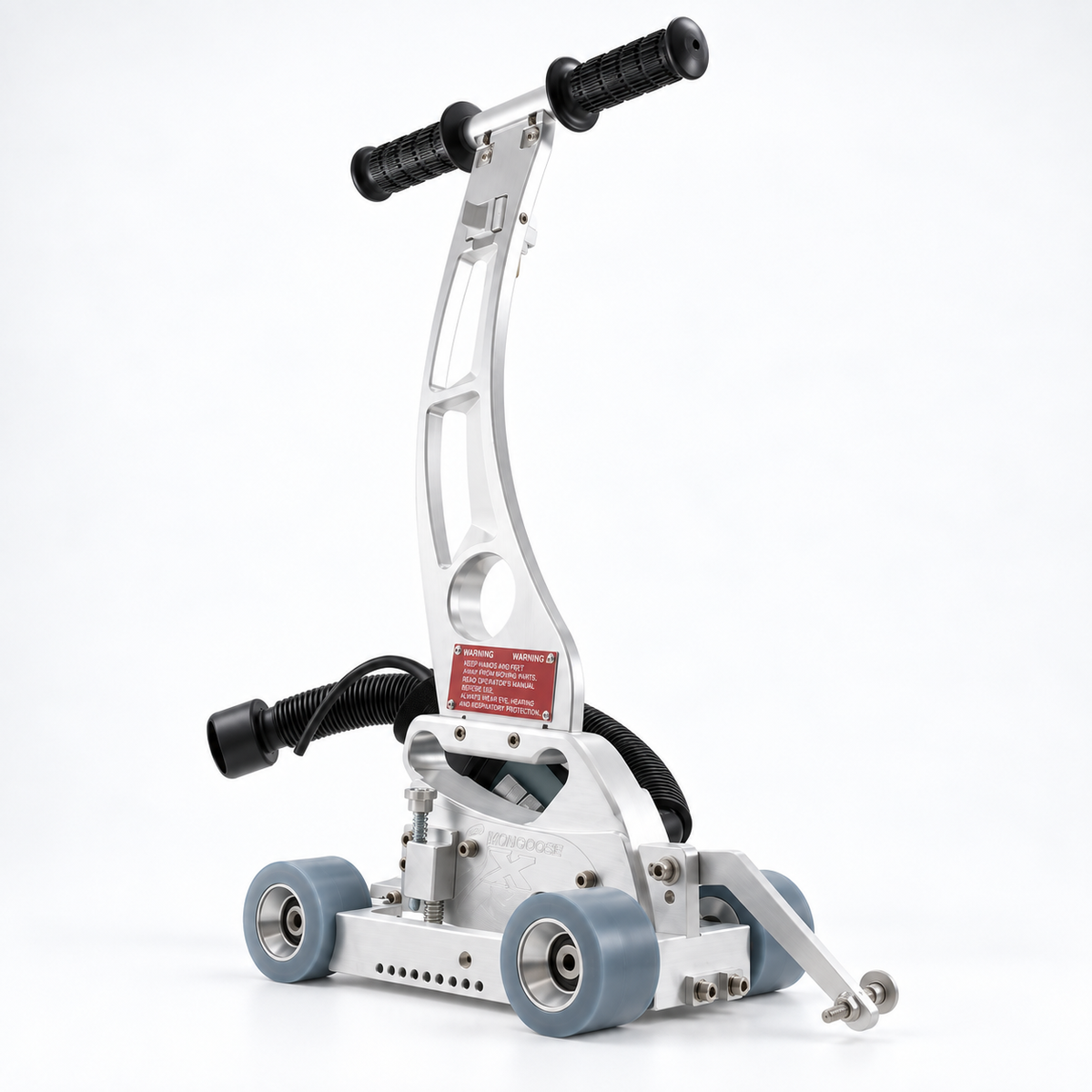

Mongoose X Saw + Stand-Up Handle

Best for operators who want the flexibility to engrave while standing upright or remove the handle for low-profile cutting.

Includes:

• Mongoose X concrete engraving saw

• Removable stand-up operating handle

• Handle-mounted extension on/off switch

• 3.1-inch × 0.125-inch premium USA diamond blade

• Front and rear alignment pointers

• Integrated side vacuum port

• Adjustable cutting-depth control

• Fitted protective hard case with foam insert

The handle attaches with two set screws and can be removed when you need a lower working profile or closer access in confined areas.

Fitted Protective Hard Case Included

Every Mongoose X saw comes with a rugged hard-sided carrying case designed to help protect the cutting unit and keep its primary components organized.

A fitted foam insert holds the Mongoose X, motor, hose and related components securely in place. Egg-crate foam inside the lid adds cushioning when the case is closed.

Case Features

• Rugged hard-shell construction

• Fitted foam insert for insert for the Mongoose X equipment

• Egg-crate foam cushioning inside the lid

• Recessed storage areas for the tool, hose and components

• Secure latches

• Integrated carrying handle

• Helps reduce movement during routine transportation

• Keeps the equipment organized between projects

Control Every Start and Stop

The spring-loaded cutting head gives the operator precise control over where each groove begins and ends. Press down to engage the blade, then release the pressure and the head lifts the blade out of the cut.

Depth can be adjusted while working. The fine-thread depth-control screw provides approximately 20 threads per inch for precise adjustments.

Follow Your Layout

Front and rear flip-up pointers help the operator align the Mongoose X with chalk lines and other layout markings. The open blade port also provides visibility near the blade while cutting.

Flip the pointers up and out of the way when working close to a wall or making reverse cuts.

Connect Dust Collection at the Source

The side-mounted vacuum port connects to an appropriate dust-collection system and helps collect concrete dust near the blade. Its position keeps the vacuum hose away from the primary cutting path.

Always follow applicable silica-dust safety requirements and use suitable personal protective equipment.

Choose the Groove Width You Need

The Mongoose X uses 3.1-inch premium diamond blades available in the following widths:

• 0.090 inch for narrow decorative lines

• 0.125 inch for standard grout-line effects

• 0.250 inch for wider decorative grooves

• 0.375 inch for bold accent lines

A 0.125-inch blade is included with either Mongoose X variant. Additional blade widths are sold separately.

Designs You Can Create

• Straight lines and borders

• Tile and grout-line patterns

• Slate and block layouts

• Running-bond patterns

• Random block and ashlar designs

• Squares and rectangles

• Triangles and polygons

• Geometric patterns

Circles and arcs require the optional Mongoose X center-pivot system and layout accessories, sold separately.

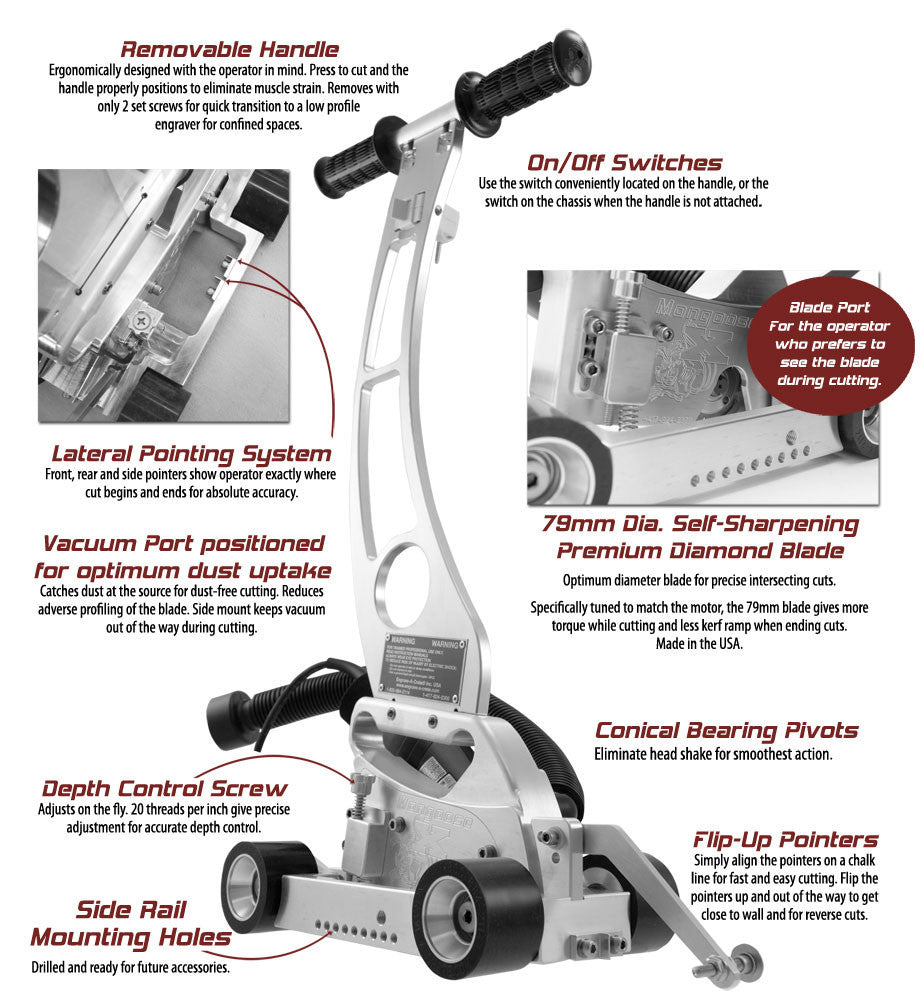

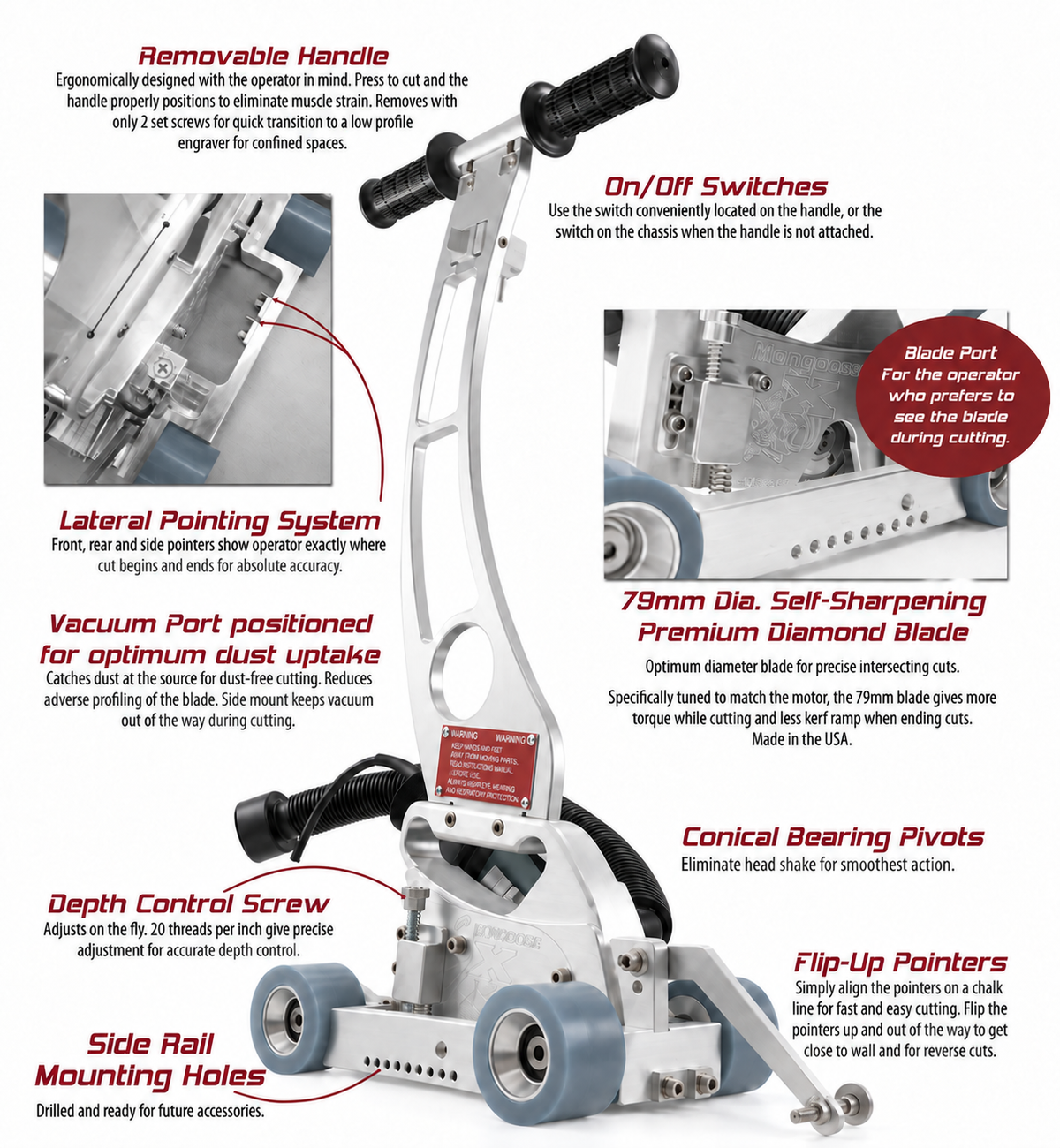

Mongoose X Features

• Spring-loaded cutting head

• Adjustable cutting depth

• Front and rear flip-up alignment pointers

• Open blade port

• Side-mounted vacuum connection

• Smooth, high-traction urethane wheels

• Conical-bearing pivots for smooth head movement

• Side-rail mounting holes for compatible accessories

• Precision-machined aluminum construction

• Lightweight and easy to reposition

• Fitted protective hard case

• Made in the USA

Specifications

• Blade diameter: 3.1 inches

• Included blade width: 0.125 inch

• Maximum cutting depth: 1/4 inch

• Minimum side cut from a wall: approximately 4 inches

• Minimum front cut from a wall: approximately 4.5 inches

• Tool dimensions: approximately 13 × 7.75 × 9.5 inches

• Tool weight: approximately 15.82 pounds

• Construction: precision-machined 6061-T6 billet aluminum

• Power: 120V, unless a different voltage option is selected or specified

Warranty

• One-year warranty on parts

• Lifetime warranty on aluminum components

Need More Layout Capability?

The Mongoose X ProPack is sold separately and adds four blade widths, the removable stand-up handle, center pivot, connecting tubes and trammel-point layout accessories for creating circles and arcs.
